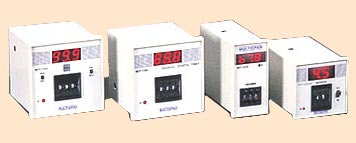

| Digital Timers |
|
|
|
SPECIFICATIONS
Range
- 2 Digit : 0-9.9/99 min/sec
- 3 Digit : 0-9.99/99.9/999 min/sec
- 2 Digit Multirange : 0-9.9/99 sec, 0-99 min/sec
- 3 Digit Multirange : 0-99.9/999 min/sec
- Control action : Delayed ON (Delayed OFF type
optional)
- Reset : Power ON Reset
- Accuracy : ±1% of Full scale
- Setting : Thumbwheel switch
- Output : 2 C/O Relay contact 5 Amp/230V AC Rating
- Supply : 230V/110V AC ±10%, 50 Hz.
- Optional :
- Auto Reset
- Buzzer Output
- Reset at front by key
|
|
|
| Model |
MDT-1300 |
MDT-2300 |
MDT-3300 |
MDT-1310 |
| Range |
2 or 3 Digit 2Digit multirange |
2 or 3 Digit 2 Digit Multirange |
2 or 3 Digit 2 Digit Multirange |
3 Digit Multirange |
| Size (mm) |
96 x 96 |
72 x 72 |
48 x 96 |
96 x 96 |
| Cutout (mm) |
92 x 92 |
68 x 68 |
44 x 92 |
92 x 92 |
| Depth(mm) |
100 |
120 |
120 |
100 |
| Display |
0.56" |
0.56" |
0.4" |
0.56" |
| Mounting |
Flush Panel mounting with side clamps fixed behind
the panel |
|
