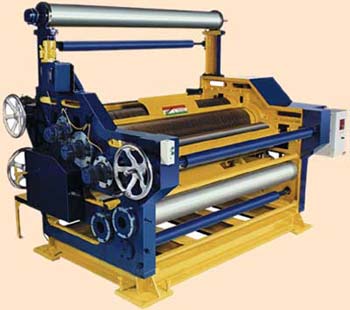

Single Facer 10 " Corrugating Machine [Single Profile]
High speed single face corrugated machine to make 2-ply corrugated board

















~ SPEED
~ PRECISION
~ PERFECTION

~ Semi High Speed 9" ~ High Speed 12"

Features

  • Verticle or Oblique Type
  • All Rollers mounted on bearing
  • Heating : Electricity, Steam, Thermic Fluid, or LPG
  • Machine Output Speed : 130 feet/ minute with Electrical heating AND 175 feet / minut with Boiler Heating.
  • Flute Roll Diameter : 10"
  • All Rollers mounted on Roller bearings
  • Two / Three Pre-Heaters provided.
  • Electrical / Stream / Thermic Heating
  • Motorised Gum Stirring Unit
  • Variable Speed Drive Motor
  • Hydraulic Self-Loading Reel Stand
  • Fluting : K, A, B, C, E, F, and N
  • Size : 42", 52", 62", 72", 80", 100"

TECHNICAL SPECIFICATION

Machine
Size
Pre-Heater Provided
Power Required (HP)
Electrical Meter Load (kW)
Boiler (kg)
Weight of Machine (MT)
Dimensions
(L x W x H) (mm)
42"
1
5.0
48
200
3.00
2190 x 1200 x 1900
52"
2
7.5
48
200
4.25
2445 x 1300 x 1900
62"
3
10
50
200
6.50
2700 x 1300 x 1900
72"
3
15.0
--
200
7.25
2946 x 1300 x 1900
80"
4
15.0
--
200
8.00
3250 x 1350 x 2000
