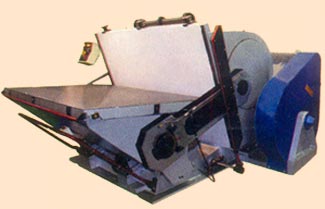

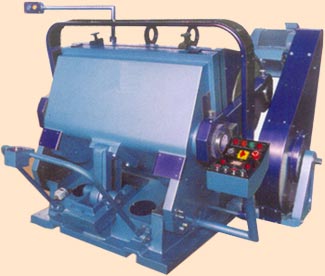

Heavy Duty Platten Punching Machine



SPECIFICATION

MODEL Everest-36 Everest-41 Everest-47 Everest- 55 Everest-65 Everest-76 Everest-86 Everest-105
PLATEN SIZE 640x920 MM 25.2x36.2 IN 711x1041 MM 28x41 IN 889x1194 MM 35x47 IN 1016x1397 MM 40x55 IN 1143x1651 MM 45x65 IN 1397x1930 MM 55x76 IN 1397x2184 MM 55x86 IN 1651x2667 MM 65x105 IN
INSIDE CHASE 564x843 MM 22.2x33.2 IN 635x965 MM 25x38 IN 813x1118 MM 32x44 IN 940x1321 MM 37x52 IN 1067x1575 MM 42x62 IN 1295x1828 MM 51*72 IN 1295x2083 MM 51x82 IN 1549x2565 MM 61x101 IN
IMPRESSION HR Min.
Max.
1300 1500 1200 1400 1000 1200 900 1100 800 1000 800 1000 800 900 800 900
POWER REQUIRED H.P.
K.W.
5 3.7 7.5 .5.5 7.5 5.5 10 7.5 15 11.2 20 14.9 20 14.9 30 22.4
PRESSURE EXERTED DURING IMPRESSION 210 TON 260 TON 300 TON 360 TON 380 TON 450 TON 575 TON 875 TON
FLOOR-SPACE REQUIRED UNPACKED 1524x1549 MM 60x61 IN 1626x1803 MM 64x71 IN 1803x2007 MM 71x79 IN 1854x2159 MM 73x85 IN 1981x2413 MM 78x95 IN 2235x2820 MM 88x111 IN 2387x3073 MM 94x121 IN 2794x3683 MM 110x145 IN
DULY PACKED 1854x1727 MM 73x68 IN 1981x1829 MM 78x72 IN 2184x2057 MM 86x81 IN 2210x2286 MM 87x90 IN 2388x2642 MM 94x104 IN 2540x3073 MM 100*121IN 2895x3226 MM 114x127IN 3048x3937 MM 120x155IN
NETT. WEIGHT-APPROXIMATE 3.8 TON 5 TON 6.2 TON 7.5 TON 10.8 TON 14.5 TON 18.5 TON 29.5 TON
GROSS WEIGH DULY PACKED(APPROXIMATE) 4.5 TON 5.7 TON 7.2 TON 8.8 TON 12.5 TON 16.5 TON 20.5 TON 32.5 TON
