Rotary Joints, Rotary Unions
and accessories are designed and manufactured, employing the
latest manufacturing technology to offer a world class performance.
We have established ourselves as one of
the market leaders in the field of Rotary Joints within a
short span. we are ready to meet any requirements in the field
of Rotary and Movable connections for thermic fluid (hot oil),
steam, water and
various other fluids.
ROTARY JOINTS For Steam, Hot Oil and Water:
Rotary Joints connects a flow of liquid or vapour from a stationary
supply pipe to a rotating machine part, such as a roll, dryer
or cylinder. They maintain a seal without any usage of packing,
adjust to operating pressure and requires no lubrication.
|
APPLICATIONS
Rubber Y Plastics : Film Machine,
Injection, Mixing Roll, Extruder, calendar.
Printing Y Packaging : Offset Press, Photogravure
press, Corrugation Machine
Paper Y Pulp : Super Calendar, Coater.
Fiber Y Dyeing : Sizings, Vacuum Dryer.
Steel Mill : Continuous Plating, Strip Mill.
Chemical : Drum Dryer, Ball Mill, Conical
Dryer.
Food : Cooker, Kettle. |

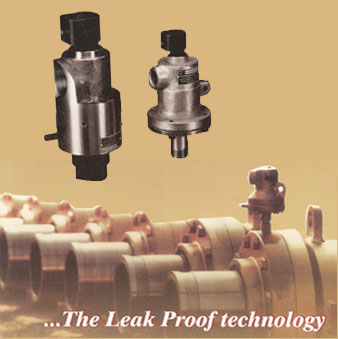

ROTARY JOINTS
High Temperature, High Pressure Steam or Hot Oil :
The FS-Series Rotary Joints have a long and
trouble free service with ease of maintenance. All the contact
parts are corrosion resistant and therefore there are no deposits
or rusted particles to damage the carbon graphite component
that can cause premature wearing of the seal area. The single
piece rotor shaft assures excellent concentricity. All sizes
are available in Mono flow as well as Dual flow (With stationary
or rotating internal pipe).
OPERATING DATA
Max. Saturated Steam Pressure : 10.55 Kg/cm2 (150 psi),
o Max. Saturated Steam Temperature: 185 C.
Max. Hot Oil Pressure : 7 Kg/cm2 ( 100 psi).
Max. Hot Oil Temperature : 3000 C.
Max. Rotational Speed : 400 RPM.
Operation at maximum pressure continued with maximum speed
should be avoided.
|
| * Operation at maximum pressure continued with
maximum speed should be avoided |
|
